A practical reference for matching the alloy to the wear mechanism or service environment. This is a guide only. Final alloy selection should be confirmed with our engineering team.
| Wear Mechanism | Recommended Alloy | Why |
|---|---|---|
| High-impact crushing (jaw, cone, hammer) | Manganese steel (Hadfield) | Work-hardens under impact; tough core prevents fracture |
| Sliding / abrasive wear, low impact | High-chrome white iron (15–25% Cr) | Hard carbides resist abrasion; brittle, needs low impact |
| Combined impact + abrasion | Mn steel or martensitic alloy | Depends on the ratio of impact to abrasion; consult us |
| Metal-on-metal sliding wear (bearings) | Bronze (RG12, CuAl grades) | Low friction, conformable, corrosion resistant |
| Corrosive service (acids, seawater) | Duplex stainless, 904L, bronze | Depends on specific corrosive medium |
| High-temperature service (>500 °C) | HK40, 50Cr-50Ni, heat-resistant grades | Stable structure at elevated temperature |
| Application | Common Alloy Choice | Process |
|---|---|---|
| Jaw crusher plates | Hadfield Mn steel, 12–14% Mn | Sand cast + solution annealing |
| Cone crusher mantles & bowl liners | Hadfield Mn steel | Sand cast + solution annealing |

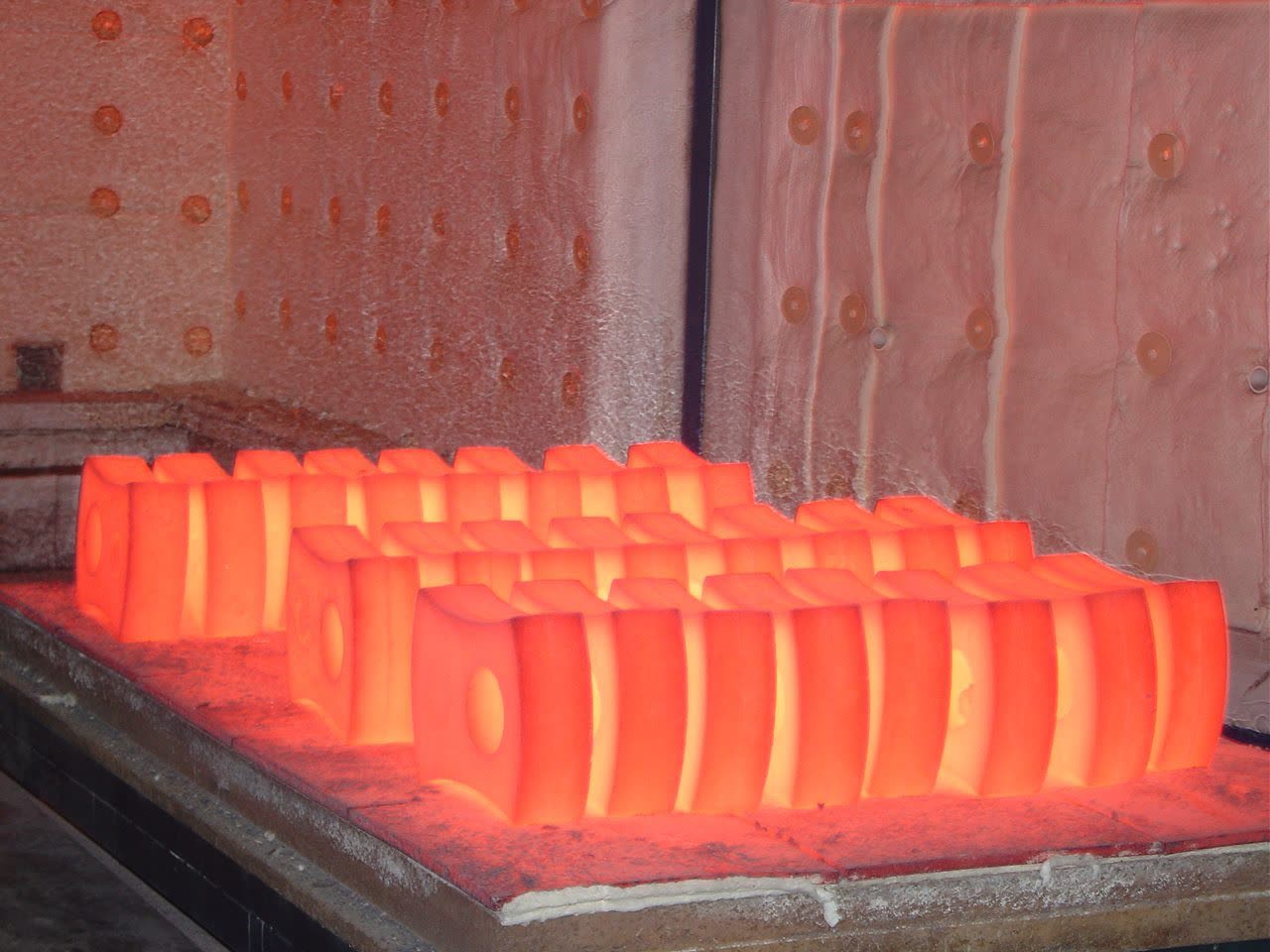

| Impact crusher hammers | Hadfield or high-Mn (18% Mn) | Sand cast + solution annealing |
| VSI rotor blades | High-chrome iron (15–25% Cr) | Sand cast |
| Mill liners (ball mill) | High-Mn or high-Cr, depending on service | Sand cast |
| Crane runway wheel body | 42CrMo4 steel | Sand cast + Q&T |
| Crane wheel wear ring | RG12 bronze | Centrifugally cast |
| Plain bushings / bearings | RG12 or CuSn grade | Centrifugally cast |

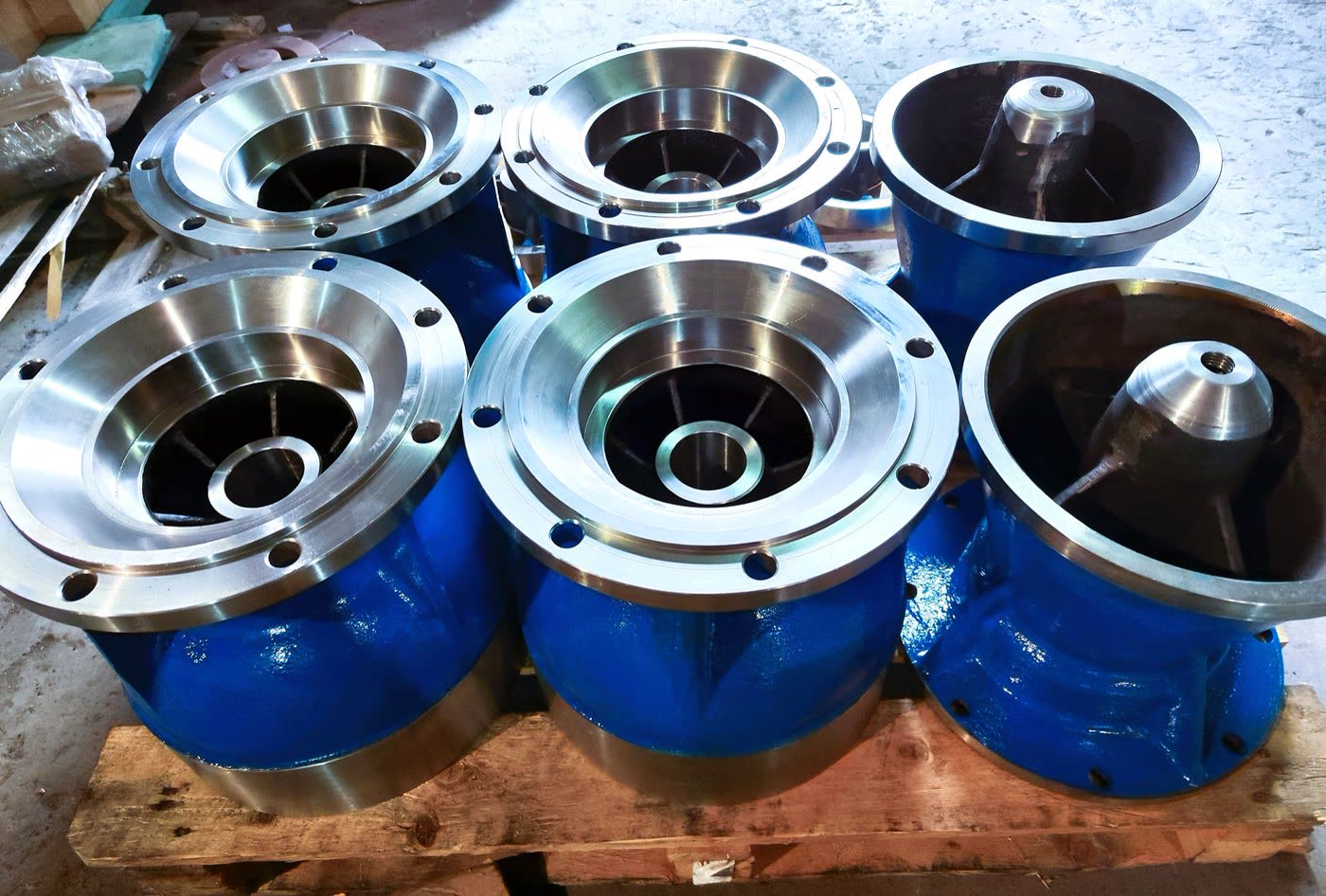

| Pump casings (corrosive) | Duplex stainless or 904L | Sand cast |

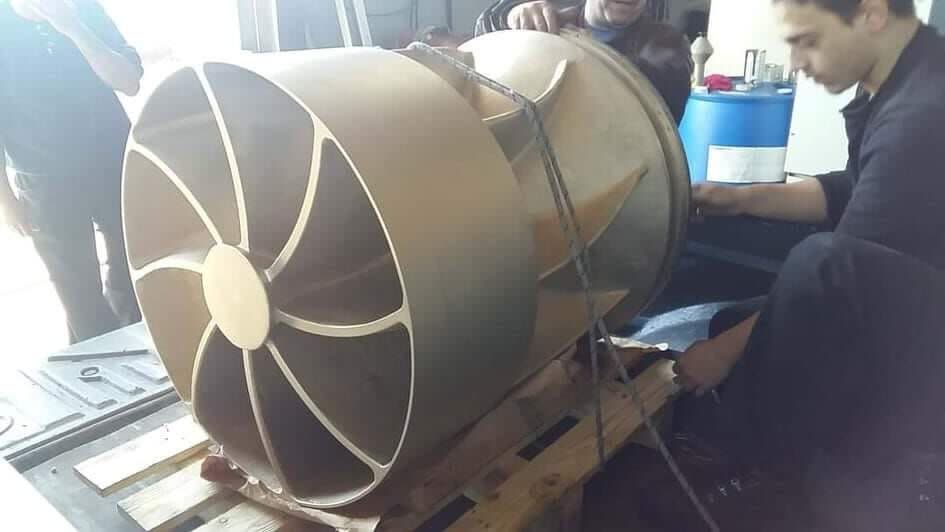

| Marine impellers / propellers | CuAl bronze | Sand cast |
Not sure which alloy is right for your application?
