3D-Printed Sand Cores on Demand

Cores on demand

Send the CAD, we deliver the casting

We choose the best 3D sand-printing partners across Europe to supply us, matched to each job: core size, sand system and lead time. The printed cores come to Mandra, where we simulate, mould, pour and machine the part. One order, one responsibility.

InputSTEP, IGES or STL, or a drawing
PrintingSelected partners across Europe
Before printingSimulation of filling and solidification
Casting & machiningMandra foundry · Perama machine shop
Simulation first: filling and solidification are checked before the cores are printed
From STEP model to printed core

The core assembly is built and checked as a 3D STEP model before it is sent for printing; the printed cores then go into the mould in Mandra.

3D STEP model of a guide-vane core assembly
3D-printed sand core for a guide vane
Printed guide-vane core
3D-printed sand cores in their delivery crate
Printed cores, as delivered
3D-printed sand cores for impellers
Printed impeller cores

Sand 3D printing eliminates the need for wooden patterns and core boxes on prototypes, low-volume production and geometrically complex parts. We have cores and patterns printed directly from your CAD files by the best 3D sand-printing partners across Europe, selected for each job. This compresses lead time from weeks (pattern making) to days (file to print).

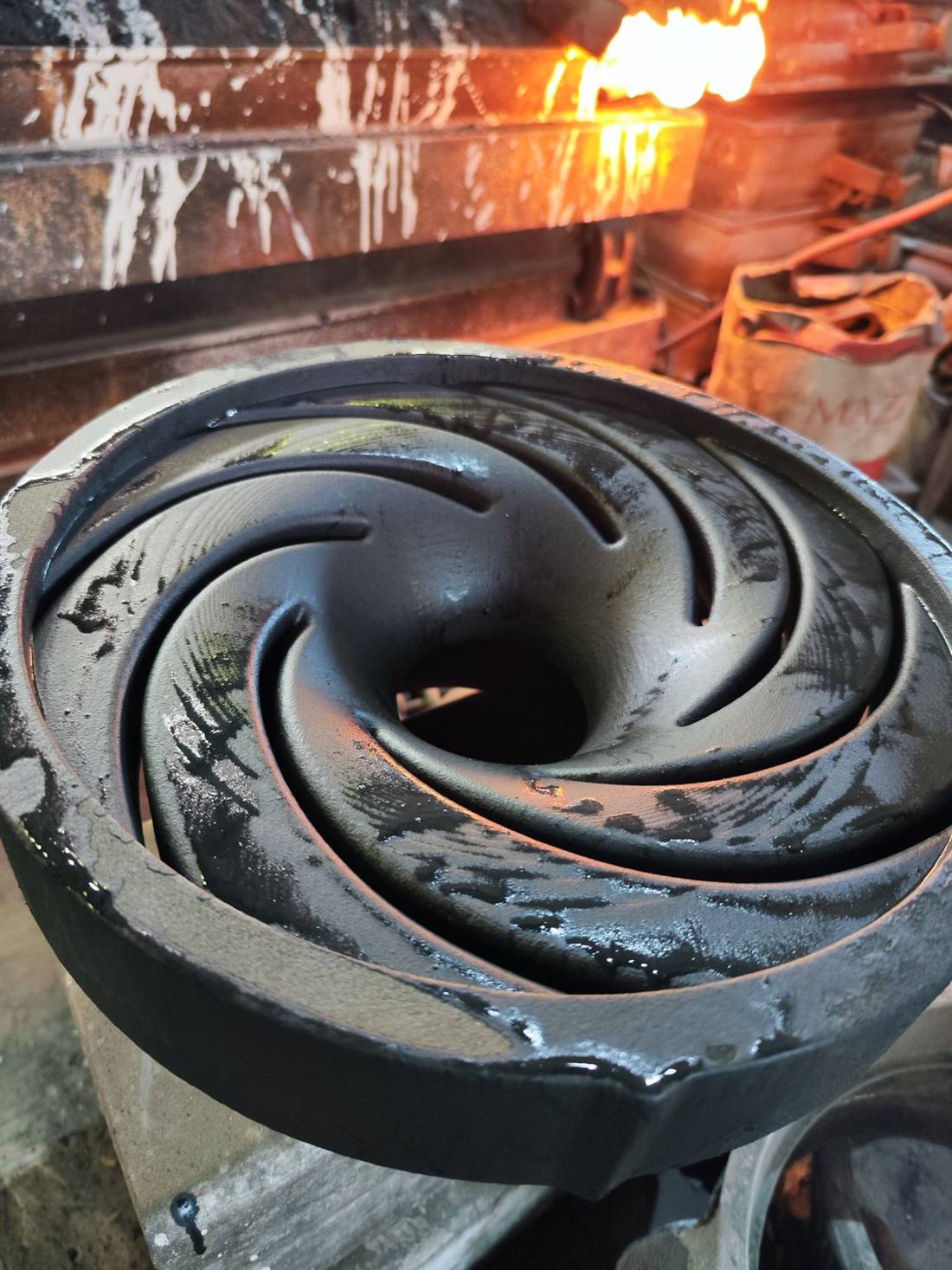

Coated impeller with a 3D-printed core geometry, in the foundry beside the furnace
A 3D-printed core lets us cast vane passages a wooden core box could never form
Why Use 3D-Printed Tooling
Prototype castingsNo wooden pattern investment
Complex internal geometryImpossible with conventional core boxes
Low-volume production1–50 pieces where tooling cost is not justified
Design iterationFast CAD changes without remaking tooling
Emergency replacementsRapid reproduction from existing CAD
Lead timeDays instead of weeks
Applications Where 3D Printing Adds Value

• Prototype pump housings with complex internal water passages
• One-off replacement parts where the original pattern is lost
• Low-volume valve bodies (5–20 pieces)
• Parts with undercuts that require collapsible cores
• Design validation castings before committing to production tooling
• Geometry optimization: test multiple core configurations without tooling cost

Cost Comparison

Wooden Pattern vs. 3D-Printed

Factor Wooden Pattern 3D-Printed
Lead time 2–6 weeks 2–5 days
Upfront cost €800–€3000+ €200–€800
Geometry limits Draft angles required No draft required
Internal complexity Limited by core box Fully complex
Design changes New pattern required CAD edit + reprint
Break-even qty >50 pieces 1–50 pieces
HYBRID APPROACH

For medium-volume production (50–200 pieces), we often 3D-print the first batch to validate geometry, then invest in wooden patterns once the design is frozen. This eliminates the risk of expensive pattern rework.
