C86300 (ASTM B584) chemical composition
High-strength manganese bronze (high-tensile brass) to ASTM B584, alloyed with aluminium, iron and manganese. Used for heavily loaded, slow-speed bearings, screw-down nuts, gears and hydraulic components where strength matters more than corrosion resistance.
- Designation
- C86300
- Material no.
- UNS C86300
- Standard
- CDA / ASTM B584
- Also known as
- Manganese bronze, High-tensile brass
- Family
- Cast brass & high-tensile brass
Chemical composition (mass %)
| Element | min | max |
|---|---|---|
| MnManganese | 2.50 | 5.00 |
| CuCopper | 60.0 | 66.0 |
| FeIron | 2.00 | 4.00 |
| SnTin | – | 0.20 |
| ZnZinc | 22.0 | 28.0 |
| PbLead | – | 0.20 |
| AlAluminium | 5.00 | 7.50 |
Basis of values: Limits per CDA / ASTM B584.
Additional requirements: Ni + Co ≤ 1.0 · Cu + named elements ≥ 99.0
We cast C86300
We cast these brass and high-tensile brass grades and machine them in the group's own CNC machine shop, with spectrometer analysis and EN 10204 3.1 certificates.

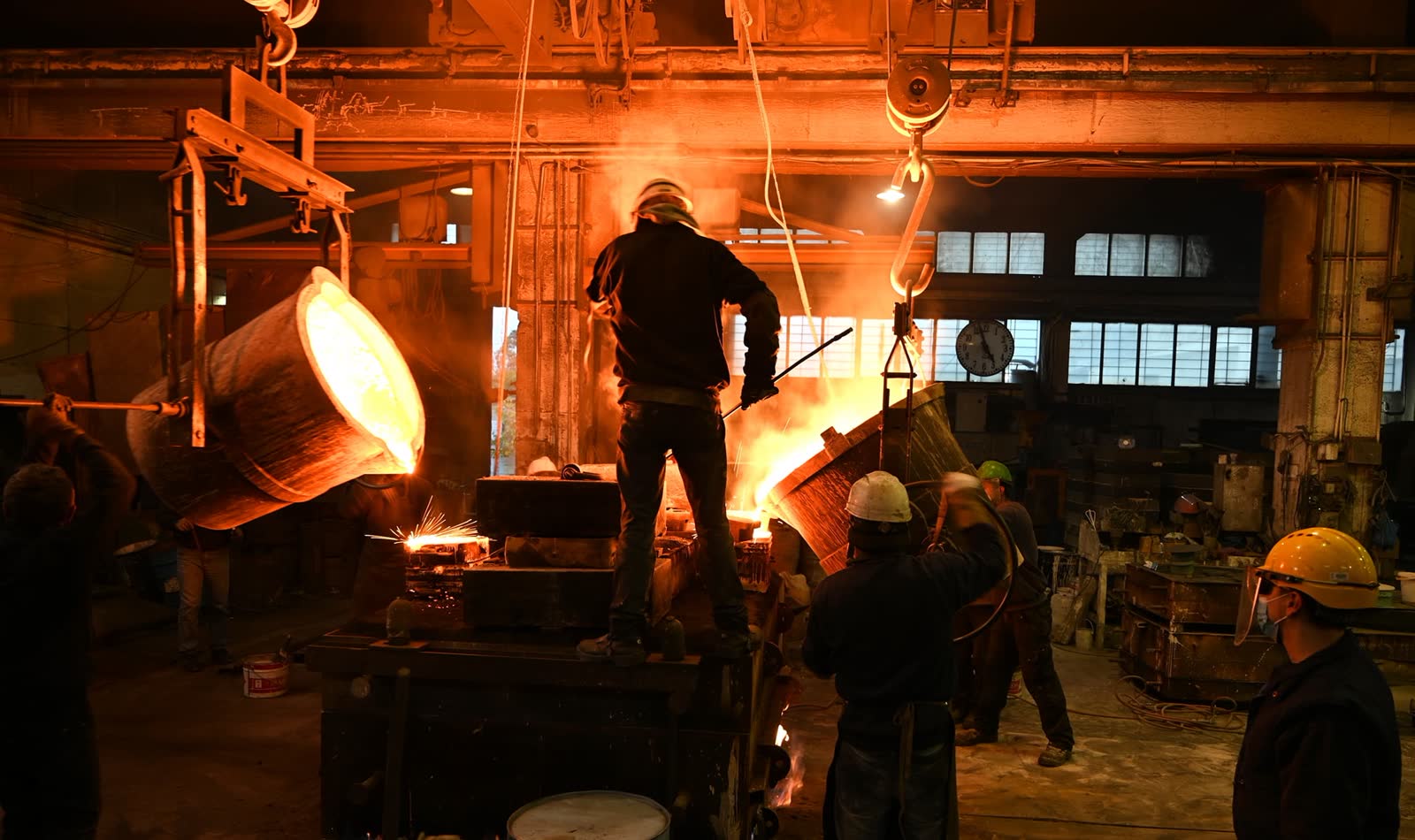

- Sand casting at our foundry in Mandra, Attica; centrifugal casting for bushings, sleeves and liners
- Heat treatment at the foundry (water, oil or air quench); CNC machining in our machine shop in Perama
- Spectrometer analysis of every heat, mechanical testing and NDT
- EN 10204 3.1 inspection certificates; ISO 9001 (both plants) and ISO 14001 (foundry) certified
